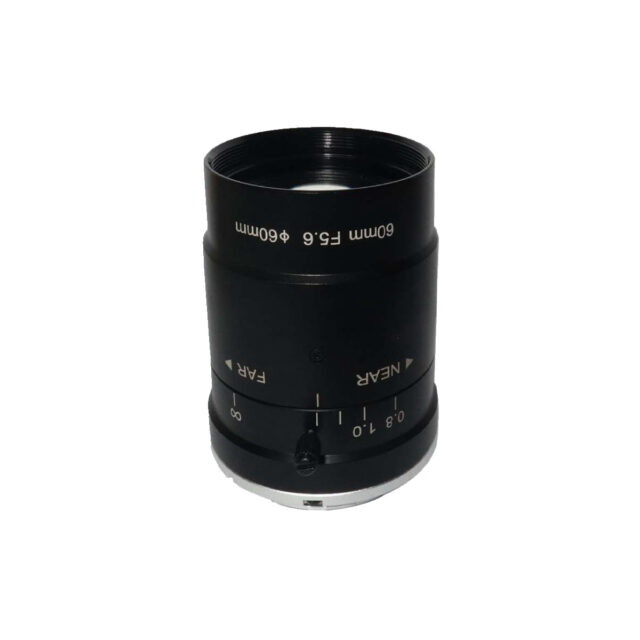

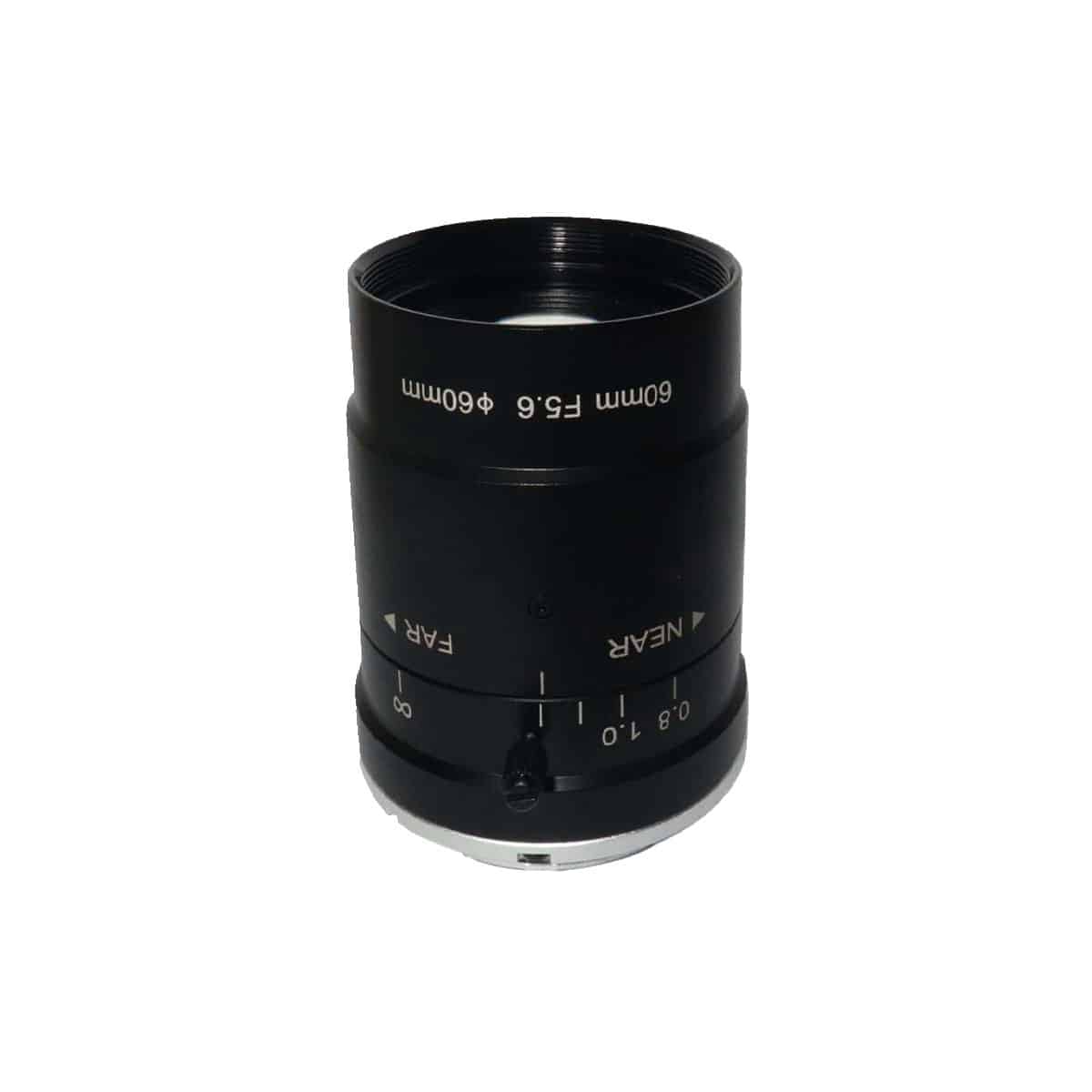

SP-FA6056M60F | φ60mm 60mm F-Mount 8K7μm Line Scan Lens

SUPERIOR® LF Series Fixed Focal Length Lenses are low distortion lenses designed for use with 2k, 4k, 6k, and 8k line scan cameras and mid-sized area scan arrays. Optimized for machine vision working distances, LF Series lenses feature high resolving powers to easily detect small defects. For coaxial inline illumination, these lenses are available with a beamsplitter for line scan sensors or with a window for area scan sensors. The locking iris is adjustable from f/2.9 to f/22, while the V-Mount provides ease of adjustment and alignment. Additionally, these lenses also feature a lockable focus and iris, which is ideal for factory automation applications where vibrations can cause performance decreases. LF Series Fixed Focal Length Lenses are ideal for use in machine vision applications, such as web inspection, sorting, identification, electronics, flat panel display and semiconductor wafer inspections ect.

Note: 28mm focal length does not work on all F-mount cameras. Camera F-mount must have an inner diameter greater than 42mm.

• High speed imaging and color printing inspection
• Food and agricultural inspection
• Surface inspection for FPD, wafers, metals, glass
